Separation systems

Filter Separators

Two-stage filtration and separation for gas treatment.

Filter Separators equipment
Equipment overview

Engineered for the application.

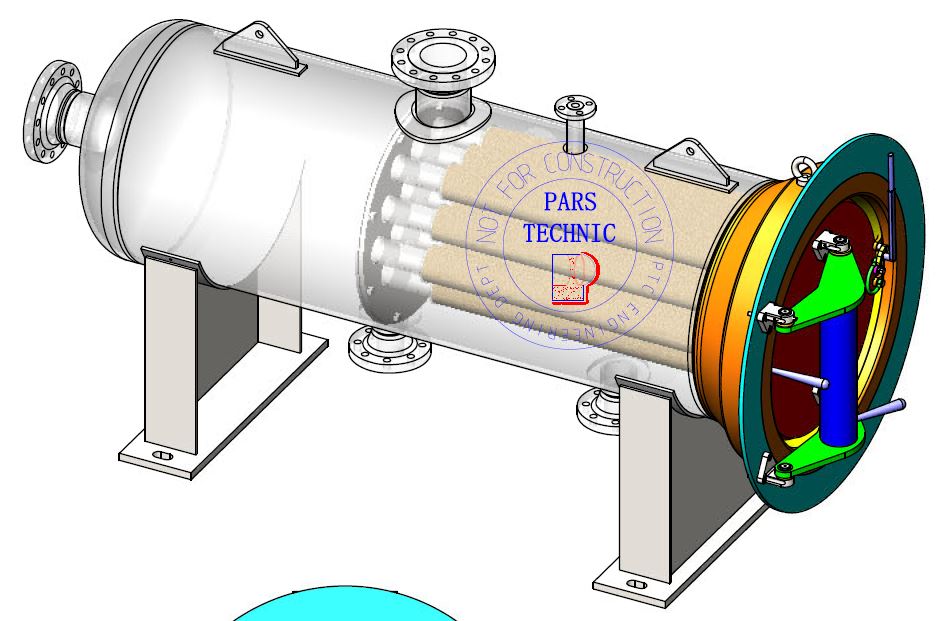

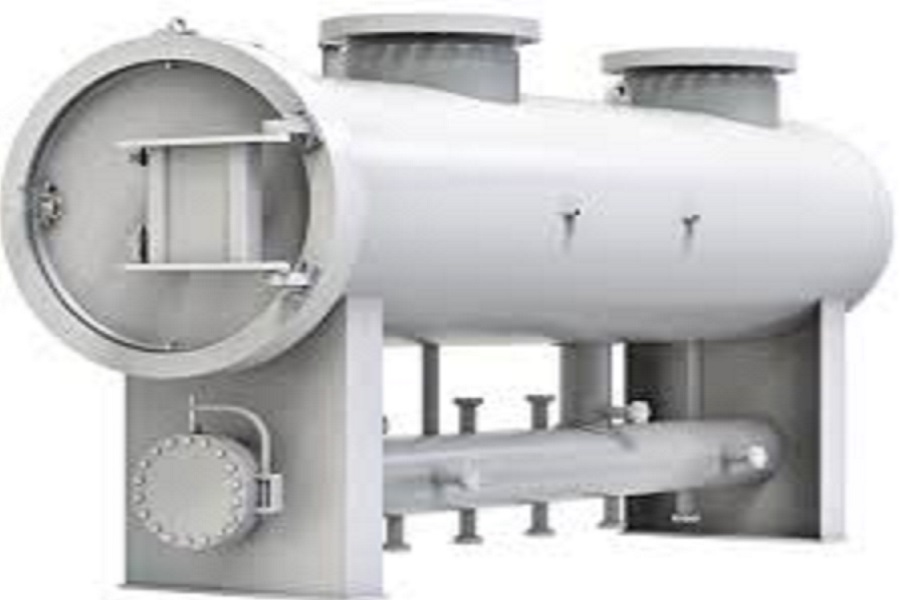

A filter separator combines filtration and liquid separation in a two-stage vessel. In the first stage, filter elements capture particles and promote liquid coalescence. A downstream separation stage removes collected droplets from the gas stream.

Engineering scope

  • Two-stage separation arrangements

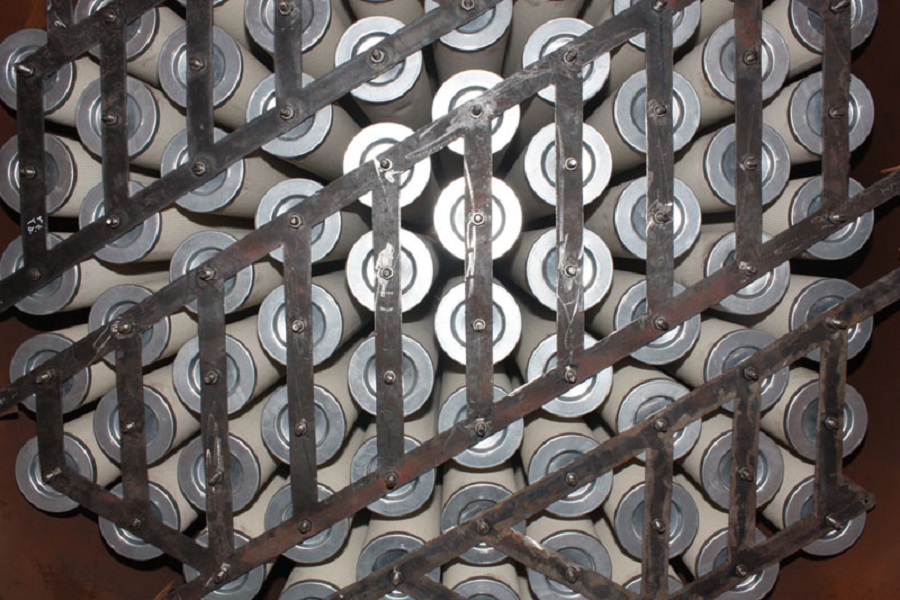

  • Filter elements selected for process duty

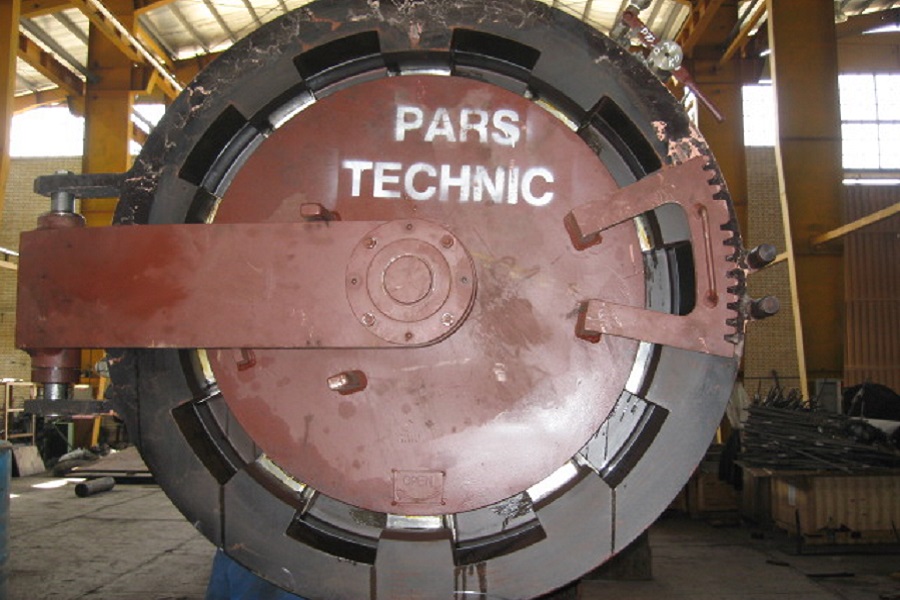

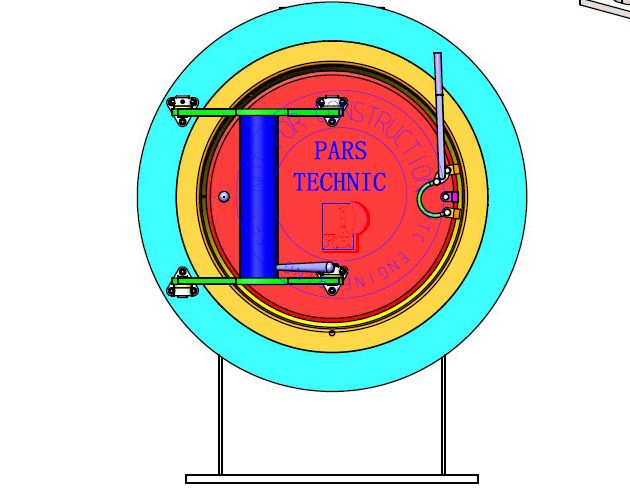

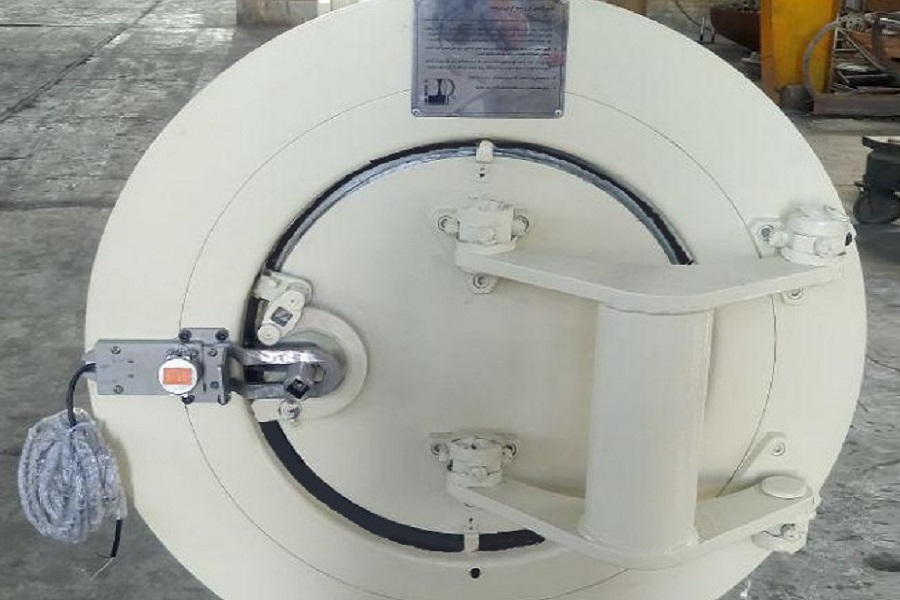

  • Access provisions for element maintenance
  • Liquid collection and drainage arrangements

At a glance

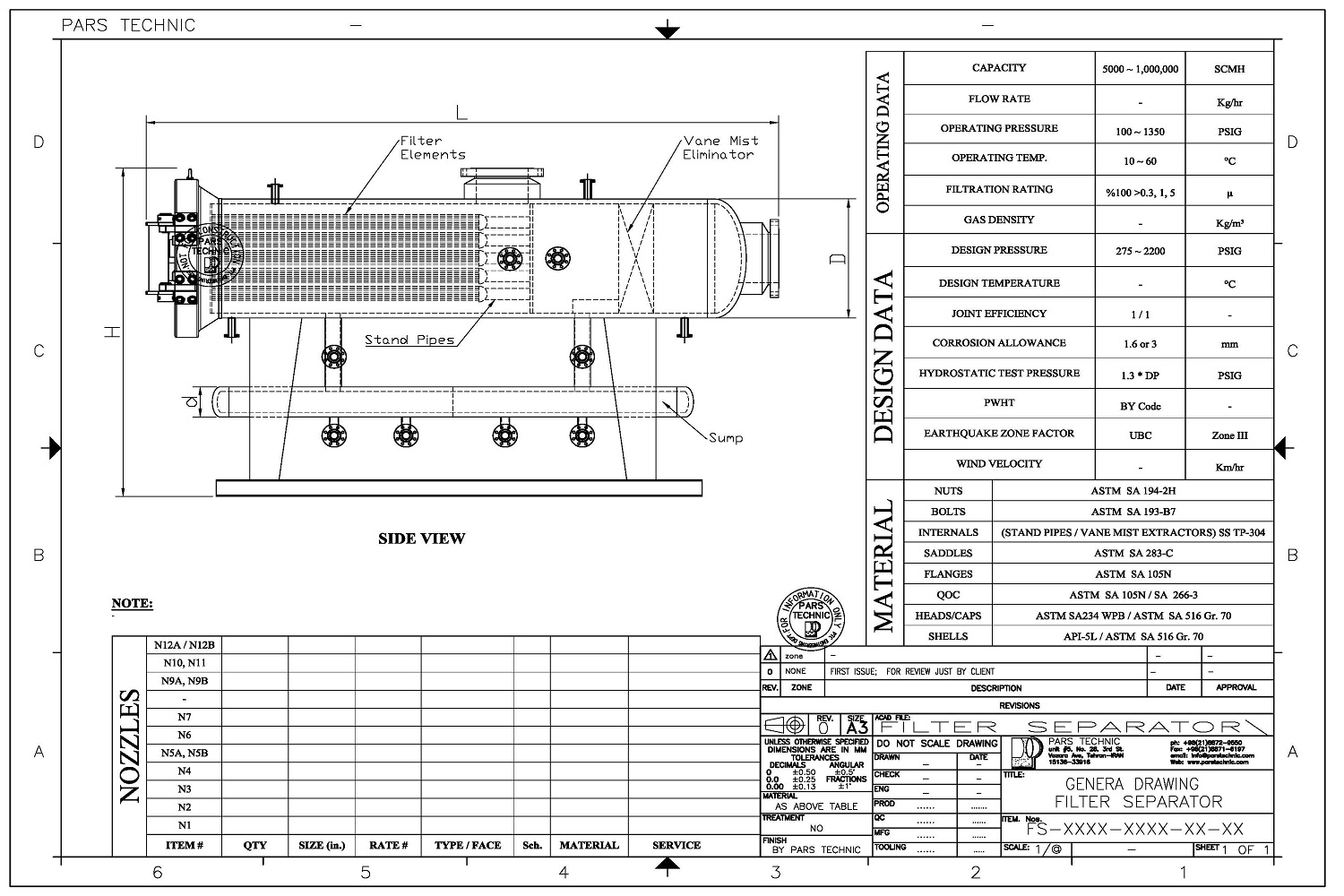

Filter Separators — equipment summary
ConfigurationTwo-stage separator
ServiceGas filtration and entrained liquid removal
Design inputsFlow, contaminants, pressure, and separation requirements
MaintenanceElement access and replacement provisions
How it works

Two stages in one vessel.

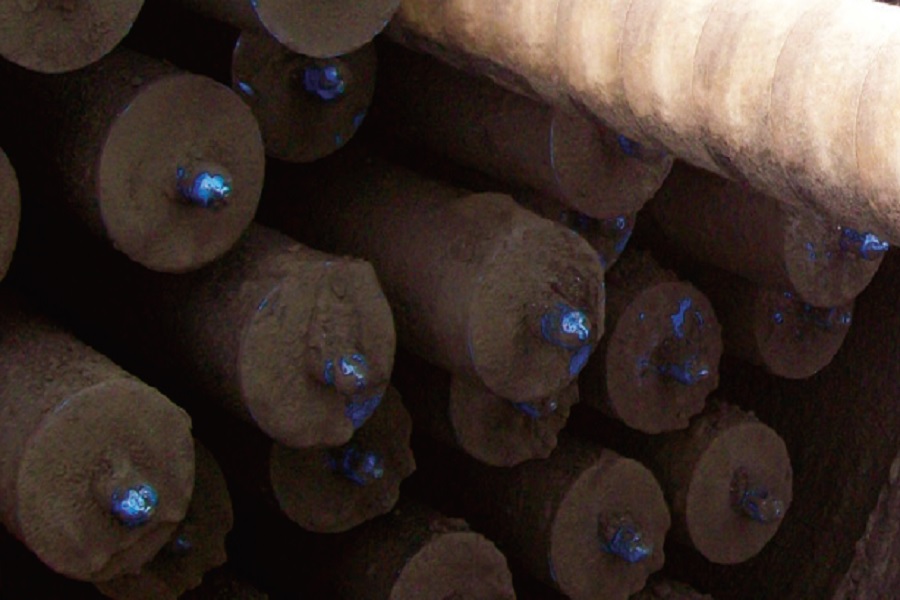

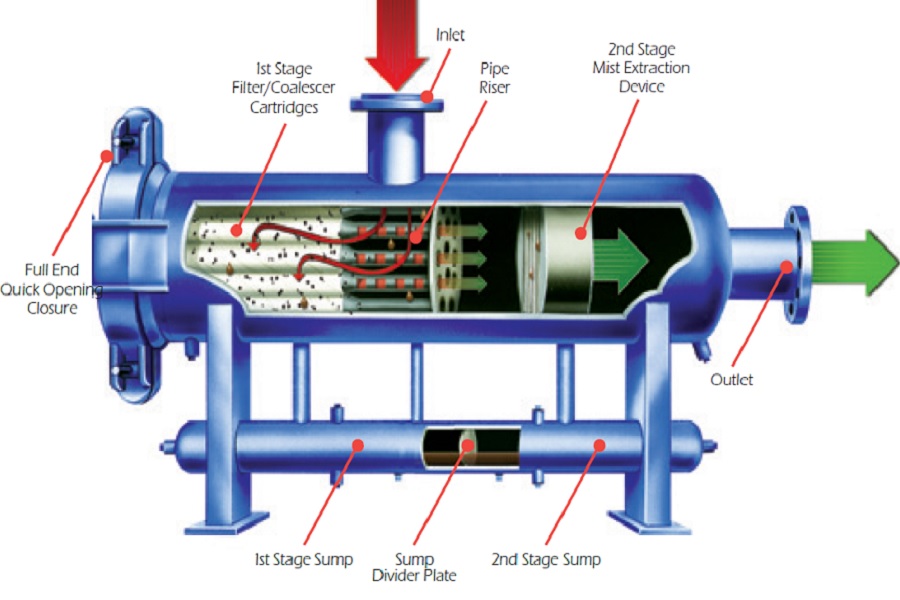

Gas enters the first stage and passes from outside to inside through filter-coalescer elements, which hold the solids and grow fine droplets into larger ones. Vanes in the second stage strip those droplets out, and the liquid drains to the sump below. Load the elements and watch the differential pressure climb toward the change-out point.

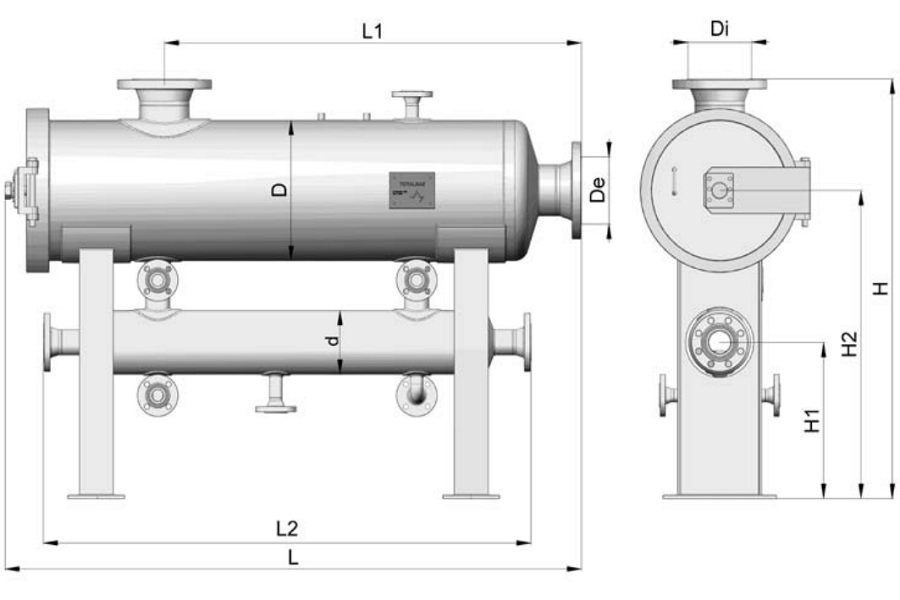

Differential-pressure gauge needle: what to watchGas path through the two stagesBarrel 900 mm ID × 4,500 mm; sump 508 mm ODIllustrative values, typical of filter-coalescer elements: about 0.14 bar (2 psi) across clean elements at design flow, rising as solids load the media to a change-out point of about 0.70 bar (10 psi). The model takes the pressure drop as proportional to the actual gas flow and growing exponentially with the solids the elements hold. Sump levels and drains run in time-lapse. Each separator is sized for its own flow, pressure and contaminants.
