Pressure containment

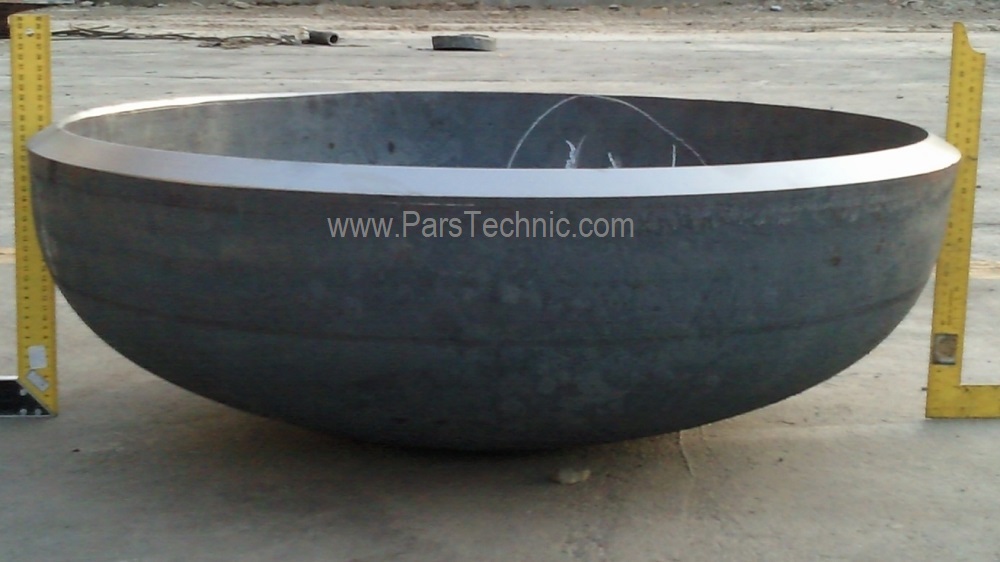

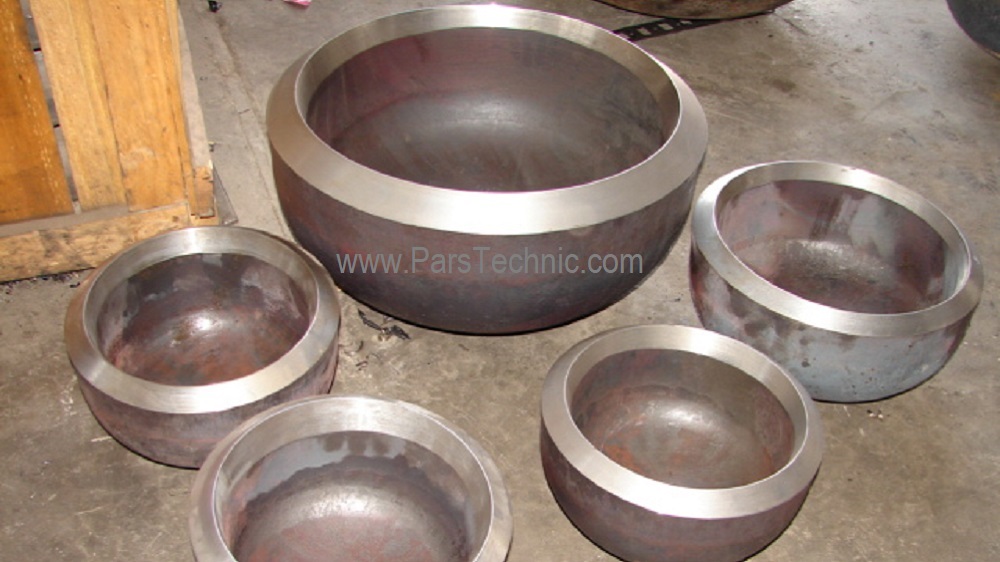

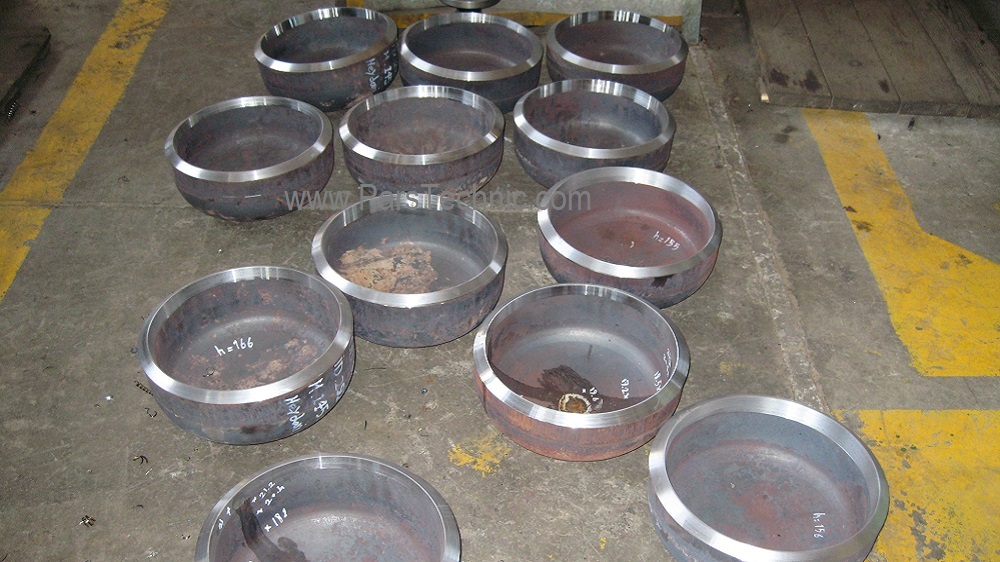

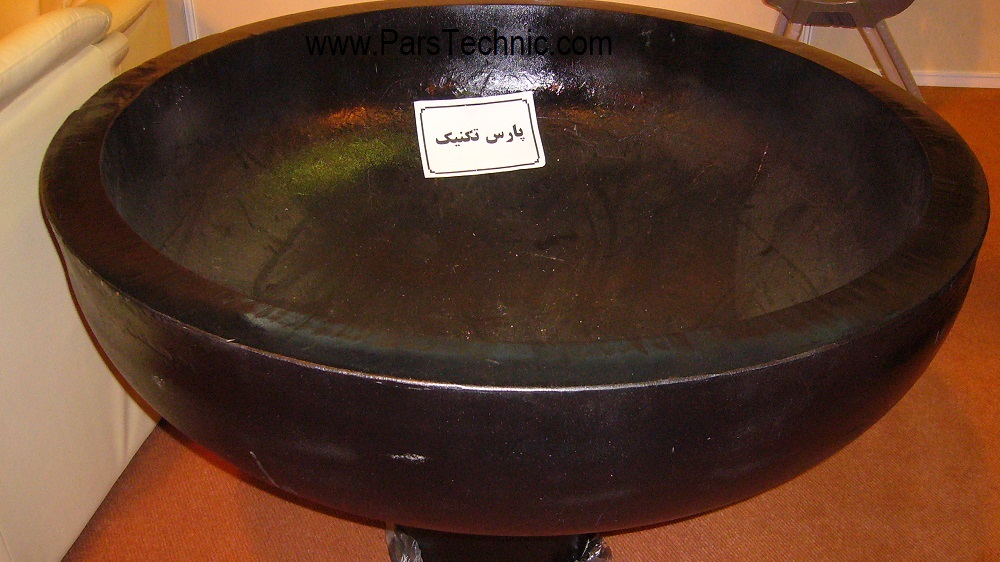

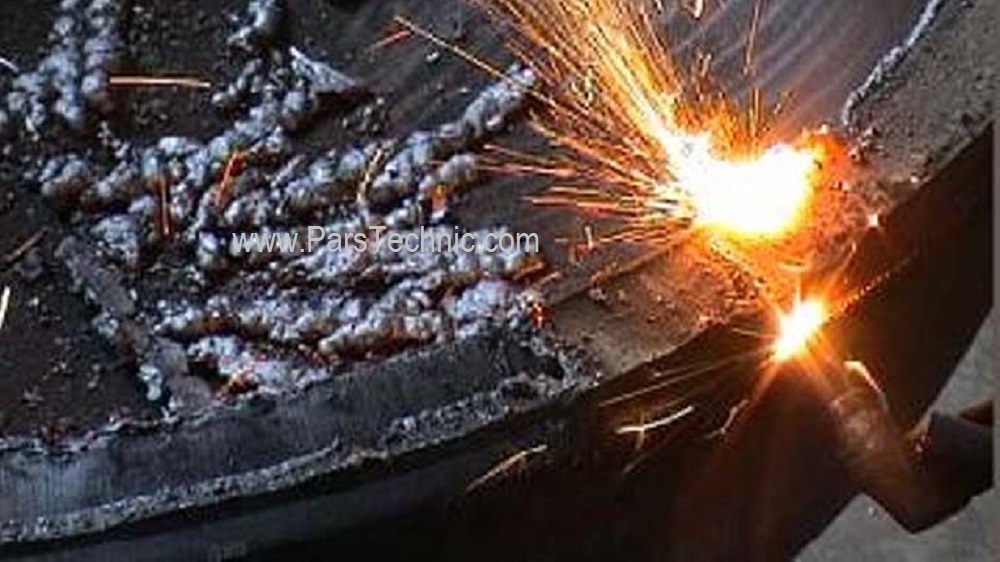

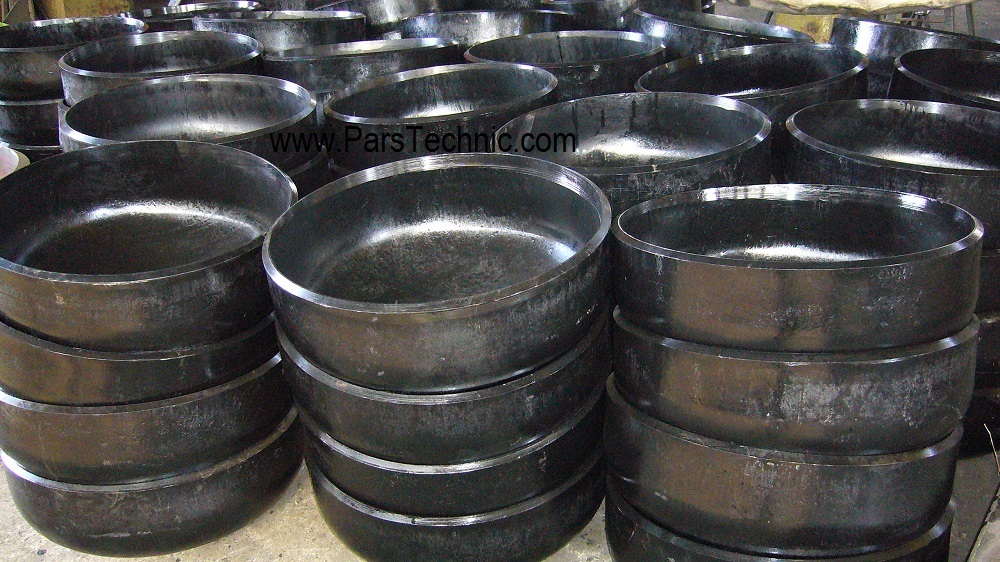

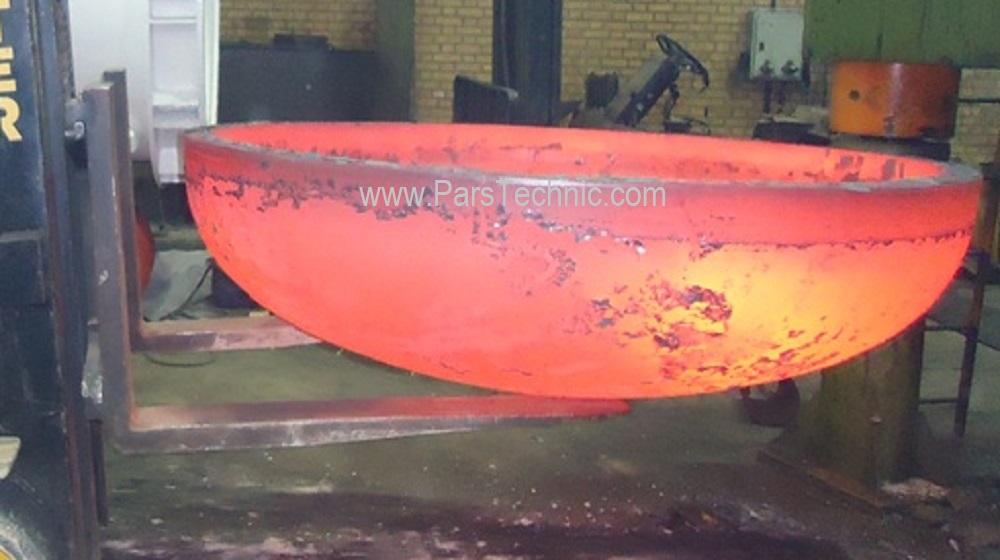

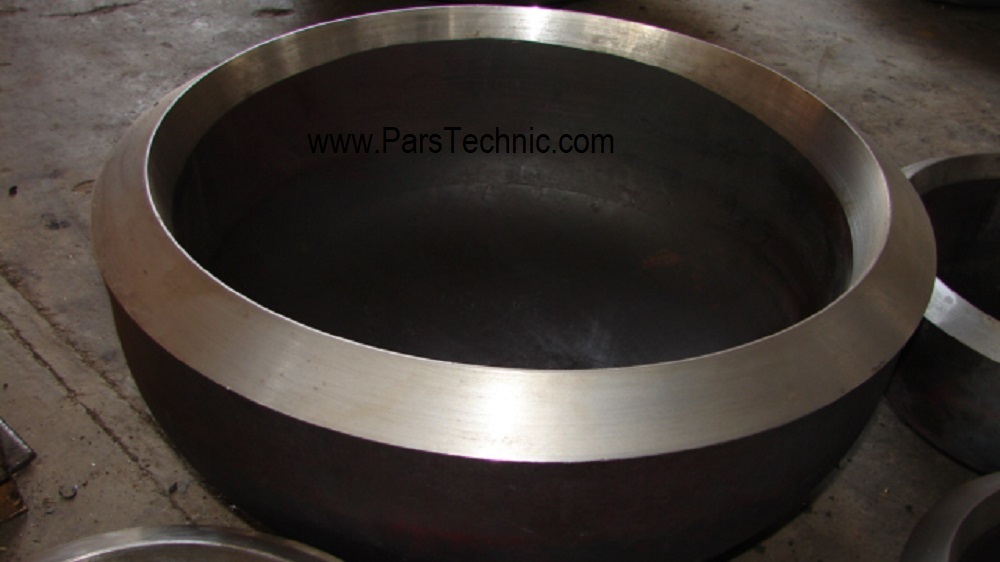

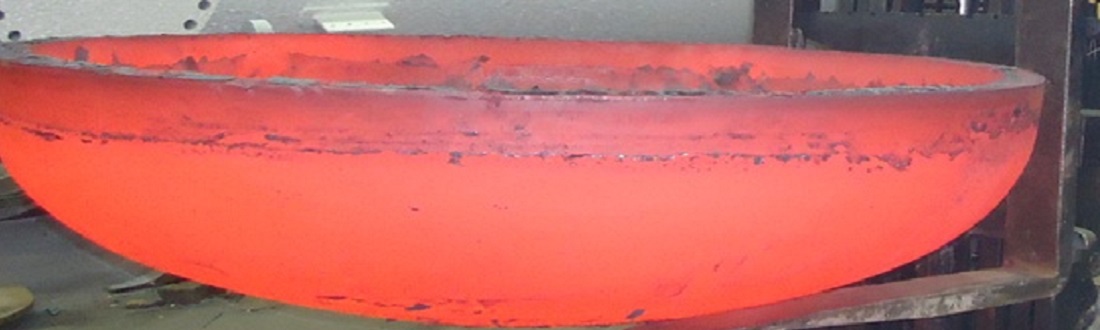

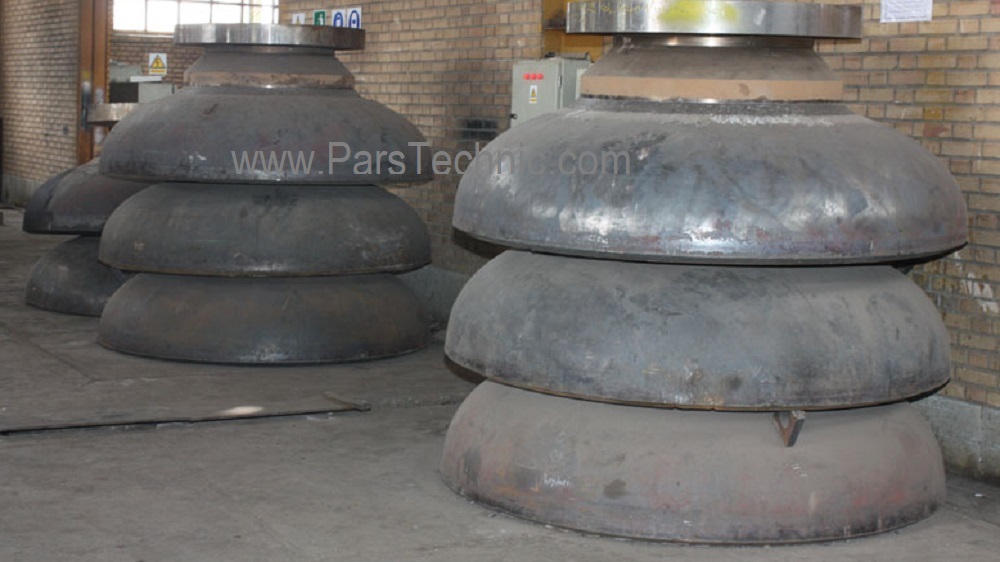

Heads & End Caps

Formed components for vessel and process equipment fabrication.

Heads & End Caps equipment
Equipment overview

Engineered for the application.

Formed heads and end caps are integral components of pressure vessels and industrial equipment. Pars Technic supplies components around the required geometry, material, thickness, and fabrication specification.

Engineering scope

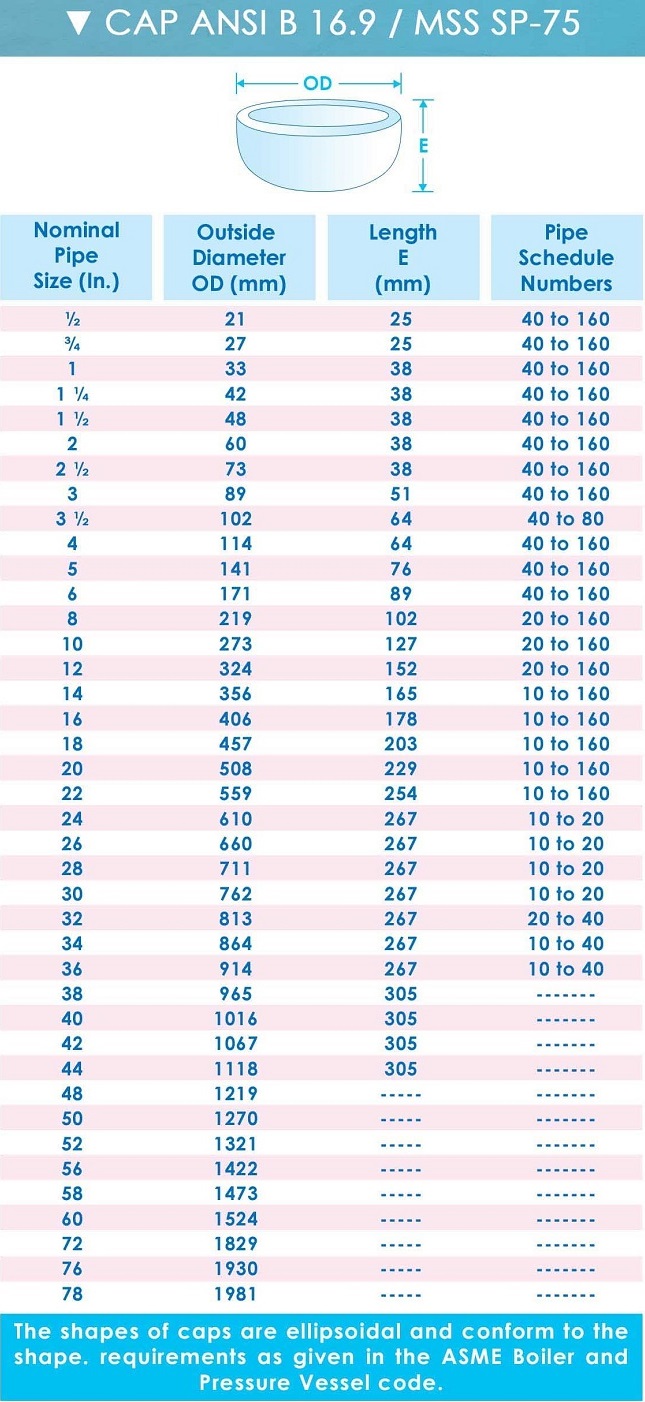

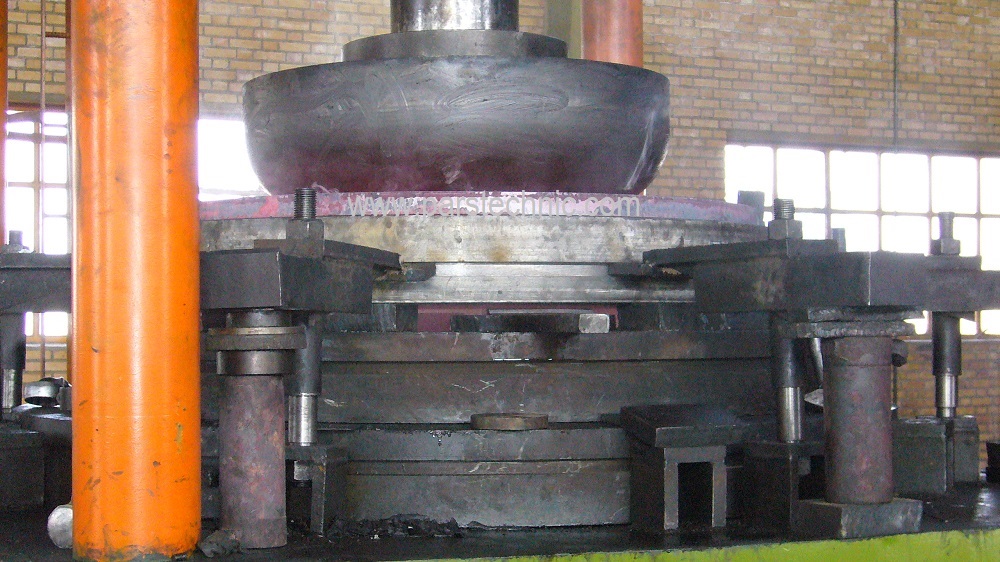

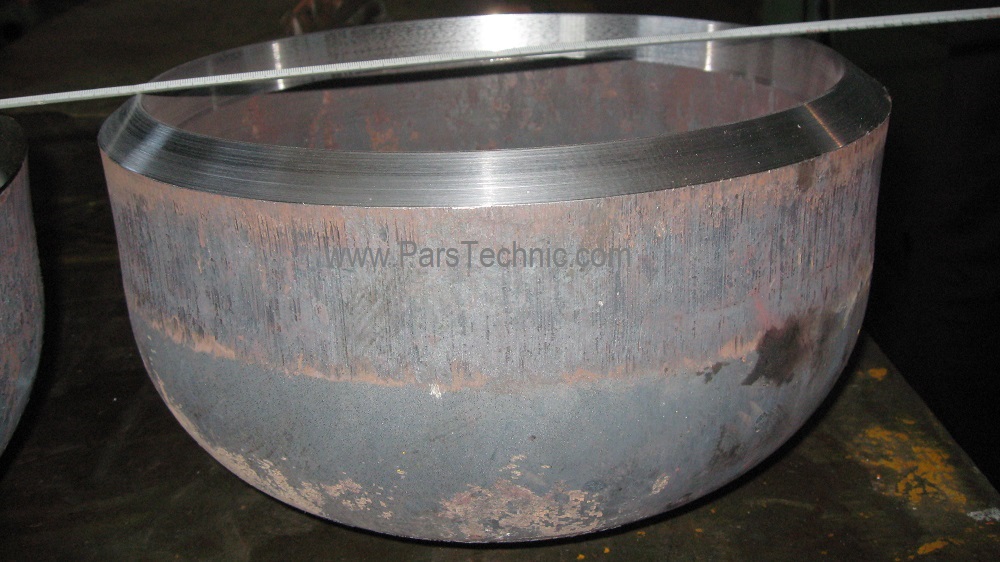

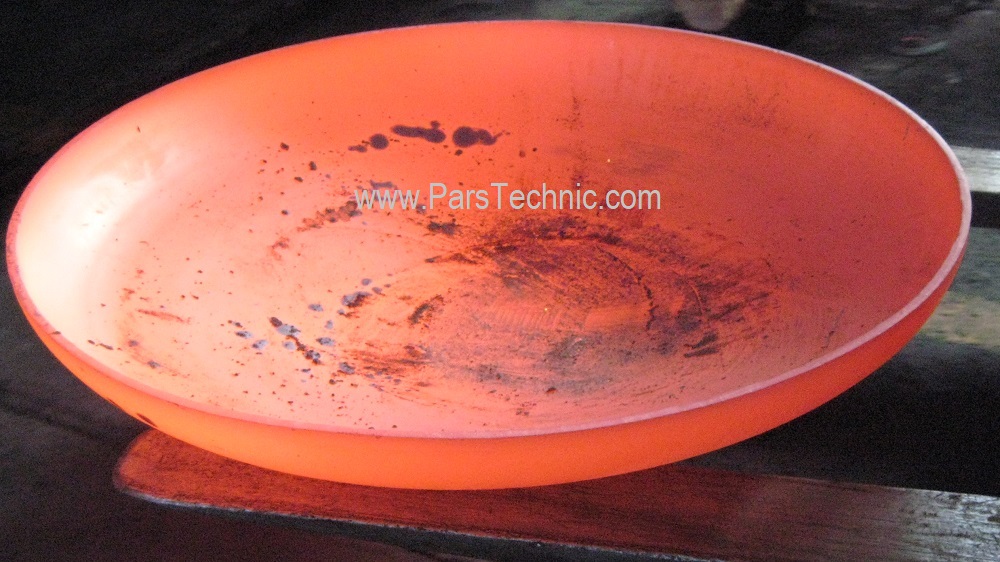

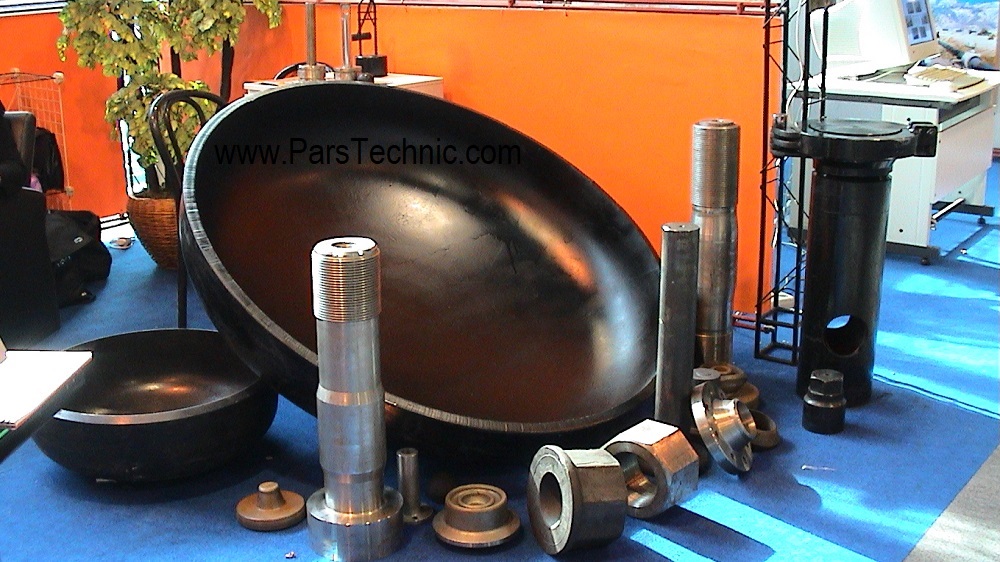

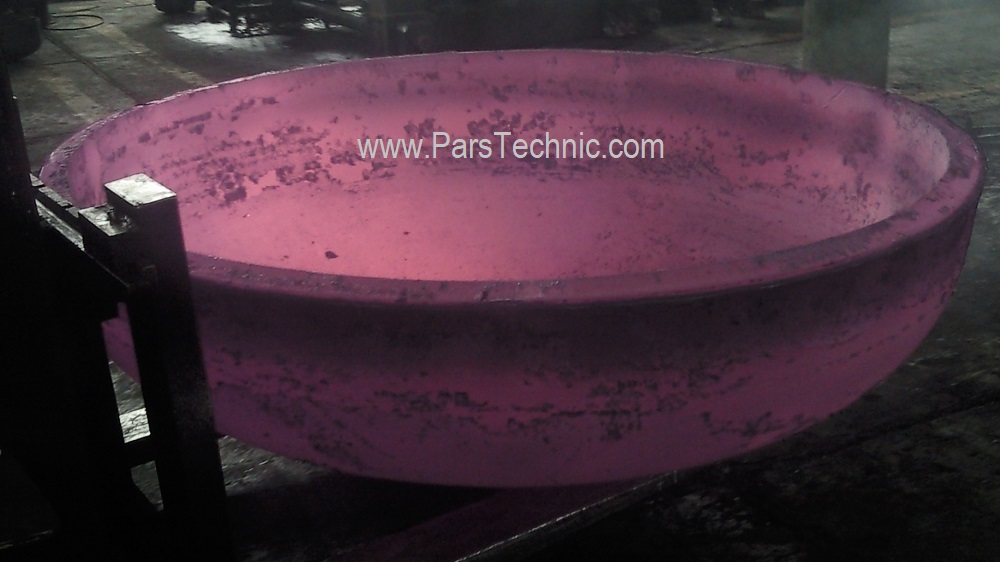

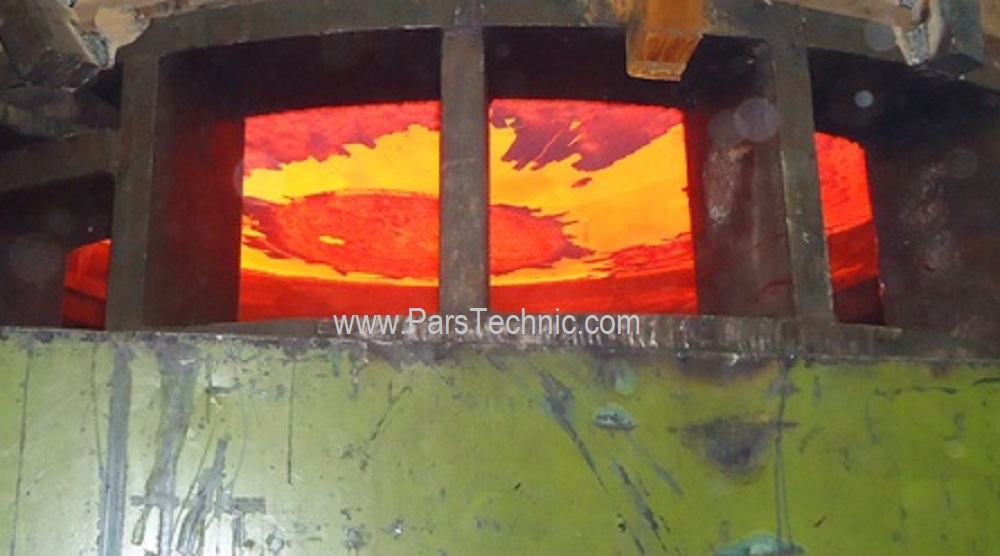

  • Forming for vessel heads and end caps
  • Project-specific geometry and thickness
  • Material selection for the intended service
  • Dimensional control and fabrication coordination

At a glance

Heads & End Caps — equipment summary
ComponentsVessel heads and end caps
Design inputsGeometry, thickness, material, and service conditions
ScopeForming and associated fabrication requirements
ApplicationsPressure and process equipment
How it works

Three head shapes, one diameter.

A formed head closes the end of a pressure vessel. Its shape sets how deep it is and how thick it must be: pick a head and a design pressure, and the gauges measure the profile and the thickness the code asks for.

Selected head: what both gauges measureHeads 1,000 mm inside diameter, 40 mm straight flangeThree heads of the same 1,000 mm inside diameter, drawn to their true profiles: a torispherical head with crown radius L = D and knuckle radius r = 0.06 D (depth 169 mm), a 2:1 semi-ellipsoidal head (depth D/4 = 250 mm) and a hemispherical head (depth D/2 = 500 mm). The required thickness follows ASME VIII-1 UG-32(e), (d) and (f) for an illustrative allowable stress S = 138 MPa (SA-516 Gr 70) and joint efficiency E = 1.0, before corrosion allowance and forming thinning: at 20 bar it is 12.8, 7.3 and 3.6 mm. Values are illustrative; each head is designed to its own data.
