Pressure containment

Pressure Vessels

Custom pressure equipment built around your operating conditions.

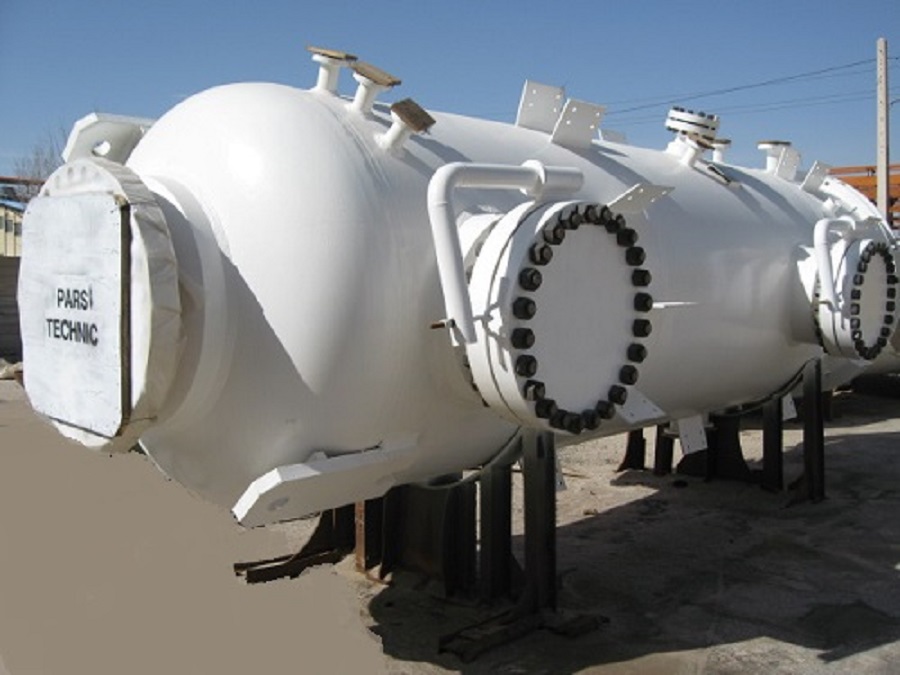

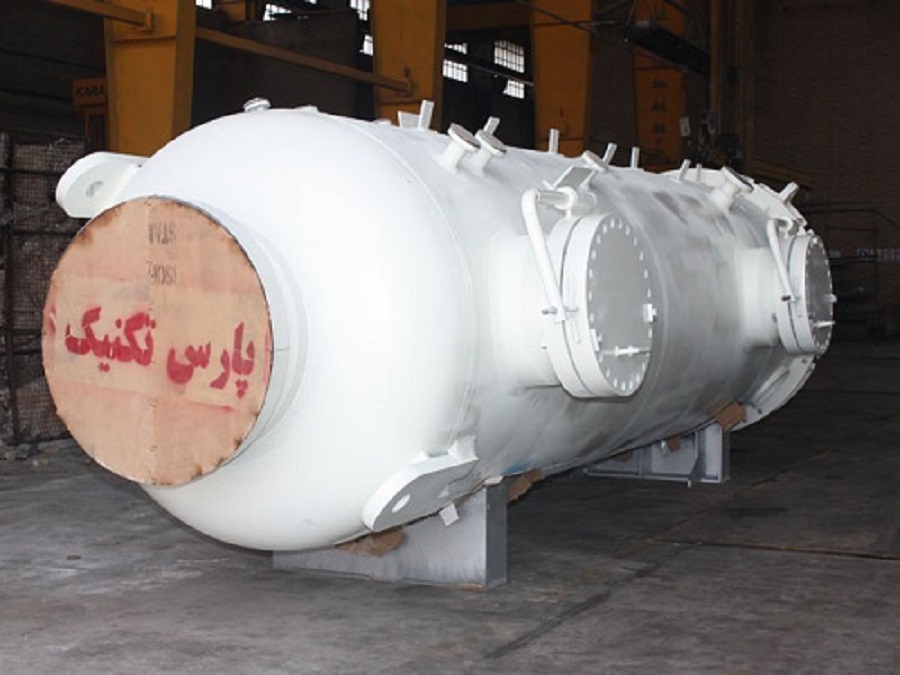

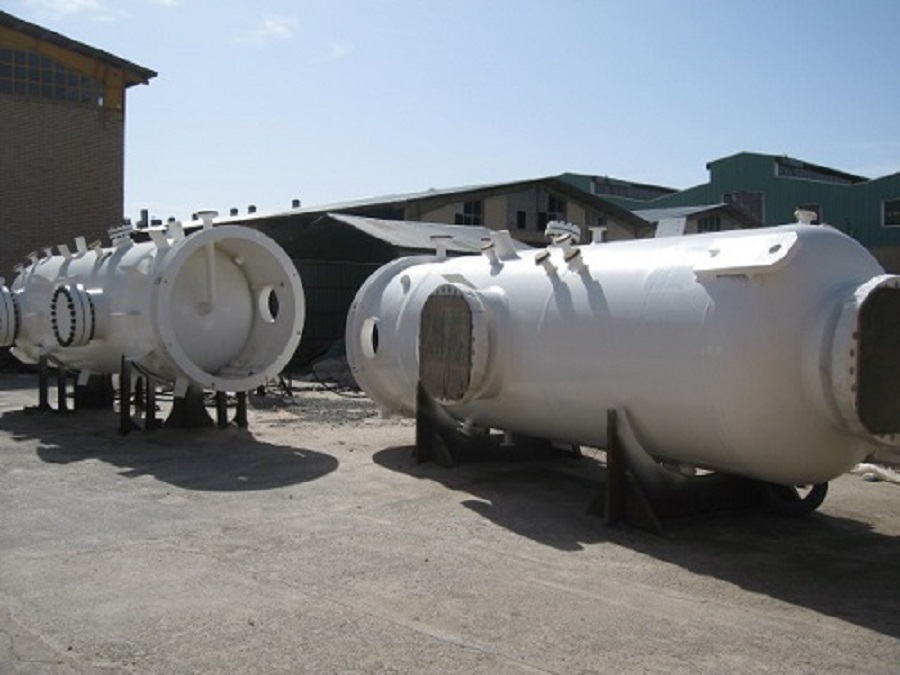

Pressure Vessels equipment
Equipment overview

Engineered for the application.

Pars Technic designs and fabricates custom pressure vessels in carbon steel, stainless steel, and alloy materials. Mechanical design, drafting, fabrication, and documentation are coordinated around the client’s specification.

Engineering scope

  • Horizontal and vertical vessel configurations
  • Carbon steel, stainless steel, and alloy fabrication
  • Application-specific internals, nozzles, and supports
  • Mechanical design and project documentation

At a glance

Pressure Vessels — equipment summary
ConfigurationsHorizontal and vertical
MaterialsCarbon steel, stainless steel, and project-specific alloys
ApplicationsAir receivers, process vessels, reactors, and separation equipment
Design basisOperating conditions and approved project specification
How it works

A hydrostatic test, step by step.

Pressure vessels built to ASME Section VIII, Division 1 are pressure-tested before they leave the shop. Run the test on the model: the gauges, the stress in the shell and the dial indicator all follow one calculation.

Gauge needles and dial indicator: what the test readsShell 1,000 × 10 mm, 3,000 mm T/T, 2:1 headsAn illustrative vessel designed for 16.0 bar g is tested with water at 1.3 times that pressure, 20.8 bar g (UG-99(b)). At test pressure the hoop stress in the 10 mm shell is about 105 MPa, 40 % of the plate's minimum yield, and the shell grows about 0.23 mm in radius, which the dial indicator at mid-span reads. Each vessel's test follows its own design data.
From our archive

Equipment in focus.

Equipment demonstrations

A closer look at the equipment.
